171646.60 LEE

Name: 171646.60 LEE
Brand: Leeson Electric
SKU: 171646.60 LEE
Availability: OutOfStock

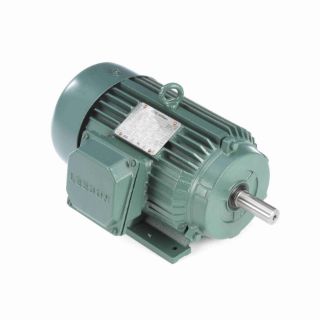

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

171646.60

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

4-Pole Continuous-Duty

Description

LEESON® Ultimate e® AC Motor, 4-Pole Continuous-Duty, General Purpose AC Motors Application, 1.5 hp, 208 to 230/460 VAC, 4.8 to 4.8/2.4 A, 60 Hz Frequency, 3 ph, 1760 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 145T Frame, 0.88 in Dia x 2.25 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 4.5 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 10:1 Variable Torque Speed, 13.46 in L x 9.45 in W x 7.15 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Premium efficient ratings and inverter rated
Class F insulation system 140 frame and higher
Dynamically balanced rotors
Torques exceed NEMA performance standards
WattSaver® e premium efficient motors
Inverter-rated, Continuous duty
Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications

Specifications

Amperage Rating:	4.8 to 4.8/2.4 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	13.46 in L x 9.45 in W x 7.15 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	145T
Frequency Rating:	60 Hz
Horsepower:	1.5 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.88 in Dia x 2.25 in L
Speed:	1760 rpm
Temperature Rating:	40 deg C
Torque Rating:	4.5 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
