Actual Product May Vary From Image

171791.60 LEE

Name: 171791.60 LEE
Brand: Leeson Electric
SKU: 171791.60 LEE
Availability: OutOfStock

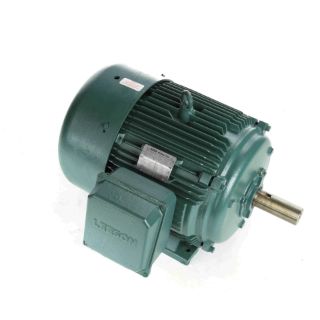

LEESON® 171791.60 4-Pole Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 60 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 364T Frame, 1790 rpm Speed, Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 171791.60

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous-Duty

Description

LEESON® AC Motor, 4-Pole Continuous-Duty, Sewage and Wastewater Pump Motors Application, Severe Duty Motors Special Features, 60 hp, 208 to 230/460 VAC, 147 to 139/69.5 A, 60 Hz Frequency, 3 ph ph, 1790 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 364T Frame, 2.38 in Dia x 5.88 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 176 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 10:1 Variable Torque Speed, 32.32 in L x 21.46 in H Dimensions

Application

Chemical Plants, Foundries, Pulp, Paper Mills, Waste Management Facilities, Above Ground Mines, Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Severe Duty Motors

Specifications

Amperage Rating:	147 to 139/69.5 A
Application Type:	Sewage and Wastewater Pump Motors
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	32.32 in L x 21.46 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	364T
Frequency Rating:	60 Hz
Horsepower:	60 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	2.38 in Dia x 5.88 in L
Speed:	1790 rpm
Temperature Rating:	40 deg C
Torque Rating:	176 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
