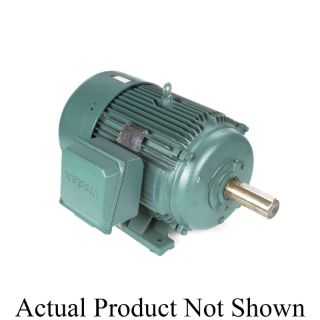

Actual Product May Vary From Image

171796.60 LEE

Name: 171796.60 LEE
Brand: Leeson Electric
SKU: 171796.60 LEE
Availability: OutOfStock

LEESON® 171796.60 2-Pole Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 100 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 405TS Frame, 3578 rpm Speed, Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 171796.60

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

2-Pole Continuous-Duty

Description

LEESON® AC Motor, 2-Pole Continuous-Duty, Sewage and Wastewater Pump Motors Application, Severe Duty Motors Special Features, 100 hp, 208 to 230/460 VAC, 222 to 214/107 A, 60 Hz Frequency, 3 ph ph, 3578 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 405TS Frame, 2.13 in Dia x 4.25 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 441 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 10:1 Variable Torque Speed, 34.92 in L x 22.33 in H Dimensions

Application

Chemical Plants, Foundries, Pulp, Paper Mills, Waste Management Facilities, Above Ground Mines, Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Severe Duty Motors

Specifications

Amperage Rating:	222 to 214/107 A
Application Type:	Sewage and Wastewater Pump Motors
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	34.92 in L x 22.33 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	405TS
Frequency Rating:	60 Hz
Horsepower:	100 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	2.13 in Dia x 4.25 in L
Speed:	3578 rpm
Temperature Rating:	40 deg C
Torque Rating:	441 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
