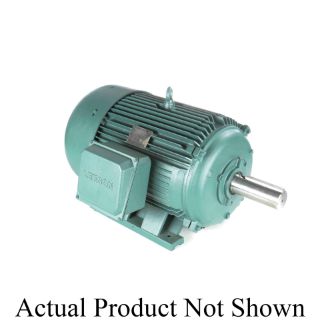

Actual Product May Vary From Image

171801.60 LEE

Name: 171801.60 LEE
Brand: Leeson Electric
SKU: 171801.60 LEE
Availability: OutOfStock

LEESON® 171801.60 6-Pole Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 125 hp, 460 VAC, 60 Hz, 3 ph Phase, 445T Frame, 1192 rpm Speed, Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 171801.60

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

6-Pole Continuous-Duty

Description

LEESON® AC Motor, 6-Pole Continuous-Duty, Sewage and Wastewater Pump Motors Application, Severe Duty Motors Special Features, 125 hp, 460 VAC, 155 A, 60 Hz Frequency, 3 ph ph, 1192 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 445T Frame, 3.38 in Dia x 8.5 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 555 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 10:1 Variable Torque Speed, 44.88 in L x 24.78 in H Dimensions

Application

Chemical Plants, Foundries, Pulp, Paper Mills, Waste Management Facilities, Above Ground Mines, Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Severe Duty Motors

Specifications

Amperage Rating:	155 A
Application Type:	Sewage and Wastewater Pump Motors
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	44.88 in L x 24.78 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	445T
Frequency Rating:	60 Hz
Horsepower:	125 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	3.38 in Dia x 8.5 in L
Speed:	1192 rpm
Temperature Rating:	40 deg C
Torque Rating:	555 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	460 VAC
