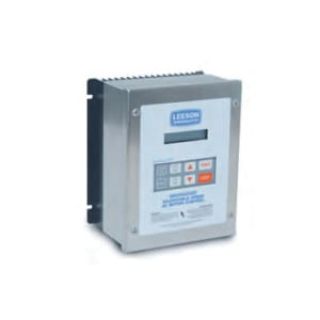

LEESON® 174567.00 Micro Single Phase Input Three Phase Output AC Inverter, 400 to 480 VAC, 52 A, 40 hp, 10.26 in W x 8.35 in D

Manufacturer: Leeson Electric

Manufacturer part number: 174567.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$8,429.31

Qty:

Product Details

Brand Name

LEESON®

Type

Single Phase Input Three Phase Output

Description

LEESON® AC Inverter, Single Phase Input Three Phase Output, Series: Micro, 400 to 480 VAC, 52 A, 40 hp, 10.26 in Width, 8.35 in D, 15-3/4 in Height, NEMA 4/IP65 Enclosure, LED

Standards

UL Listed

Features

16 bit intel microprocessor
Choice of using factory quick start program settings
150% overload capacity for one minute
Speed reference signals potentiometer, 0 to 10 VDC/4 to 20 mA inputs
Output signal 0 to 10 VDC speed/load
Two auxiliary contacts, one form C relay and two open collector outputs
Four preset speeds
Slip compensation and password protection
Adjustable carrier frequency
Adjustable acceleration and deceleration times
Forward and reverse direction
Time and voltage adjustable DC braking
Password protected
Constant torque with adjustable current limit
Steel enclosure with aluminum heat sinks
Dynamic braking kits available
PID software built-in for motor feedback

Specifications

Amperage Rating:	52 A
Depth:	8.35 in
Display Type:	LED
Enclosure Type:	NEMA 4/IP65
Height:	15-3/4 in
Horsepower:	40 hp
Series:	Micro
Voltage Rating:	400 to 480 VAC
Width:	10.26 in
