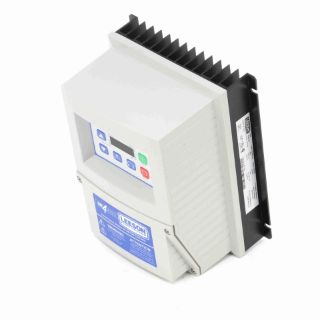

Actual Product May Vary From Image

174656.00 LEE

Name: 174656.00 LEE
Brand: Leeson Electric
SKU: 174656.00 LEE
Price: 686.67 USD
Availability: OutOfStock

LEESON® 174656.00 SM4 Flux Vector Single Phase Input/Three Phase Input/Output AC Inverter, 208 to 240 VAC, 4.2 A, 1 hp, 6.28 in W x 4.47 in D

Manufacturer: Leeson Electric

Manufacturer part number: 174656.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$686.67

Qty:

Product Details

Brand Name

LEESON®

Type

Flux Vector Single Phase Input Three Phase Output

Description

LEESON® AC Inverter, Flux Vector Single Phase Input/Three Phase Input/Output, Series: SM4, 208 to 240 VAC, 4.2 A, 1 hp, 6.28 in Width, 4.47 in D, 8 in Height, NEMA 4/IP65 Enclosure, LED

Application

Packaging Machinery, Food Processing, Conveying Systems, Machinery and HVAC Systems

Standards

CE Marked | C-Tick Certified | GOST Standard | UL/cUL Listed

Features

Indoor use only inverter that is designed to be used with vector duty motors
Enclosure NEMA 4, IP65, -10 to 55 deg C
Open loop flux vector (speed/torque)
Enhanced V/Hz with auto-tuning
Two independent accel ramps
Two independent decal ramps
Linear or S-type
Auxiliary ramp-to-stop
500 Hz standard and 1000 Hz optional output frequency
Positive logic input (PNP current sourcing) and negative logic input (NPN current sinking)
Loss of follower management
Speed commands of keypad, jog, floating point control
Scalable 4 to 20 mA current
Eight preset speeds
Process control of PID modes are direct or reverse acting
Real time monitoring of 8 register fault history, software version drive network ID, DC bus

Specifications

Amperage Rating:	4.2 A
Depth:	4.47 in
Display Type:	LED
Enclosure Type:	NEMA 4/IP65
Height:	8 in
Horsepower:	1 hp
Series:	SM4
Voltage Rating:	208 to 240 VAC
Width:	6.28 in
