174678.00 MAR

Name: 174678.00 MAR
Brand: Leeson Electric
SKU: 174678.00 MAR
Price: 2,030.36 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

174678.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$2,030.36 / EA

Description

Brand Name

LEESON®

Type

Flux Vector Three Phase Input/Output

Description

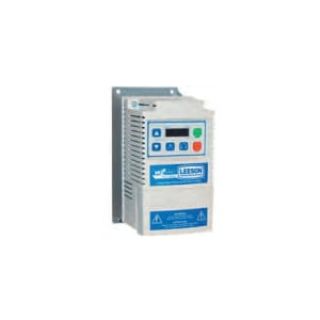

LEESON® AC Inverter, Flux Vector Three Phase Input/Output, Series: SM4, 400 to 480 VAC, 14 A, 10 hp, 8.04 in Width, 8 in D, 10 in Height, NEMA 4/IP65 Enclosure, LED

Application

Packaging Machinery, Food Processing, Conveying Systems, Machinery and HVAC Systems

Standards

CE Marked | C-Tick Certified | GOST Standard | UL/cUL Listed

Features

Indoor use only inverter that is designed to be used with vector duty motors
Enclosure NEMA 4, IP65, -10 to 55 deg C
Open loop flux vector (speed/torque)
Enhanced V/Hz with auto-tuning
Two independent accel ramps
Two independent decal ramps
Linear or S-type
Auxiliary ramp-to-stop
500 Hz standard and 1000 Hz optional output frequency
Positive logic input (PNP current sourcing) and negative logic input (NPN current sinking)
Loss of follower management
Speed commands of keypad, jog, floating point control
Scalable 4 to 20 mA current
Eight preset speeds
Process control of PID modes are direct or reverse acting
Real time monitoring of 8 register fault history, software version drive network ID, DC bus

Specifications

Amperage Rating:	14 A
Depth:	8 in
Display Type:	LED
Enclosure Type:	NEMA 4/IP65
Height:	10 in
Horsepower:	10 hp
Series:	SM4
Voltage Rating:	400 to 480 VAC
Width:	8.04 in
