174747.00 LEE

Name: 174747.00 LEE
Brand: Leeson Electric
SKU: 174747.00 LEE
Availability: OutOfStock

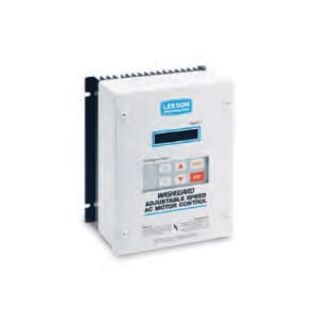

LEESON® 174747.00 Micro Three Phase Input/Output AC Inverter, 400 to 480 VAC, 14 A, 10 hp, 10.26 in W x 8.35 in D

Manufacturer: Leeson Electric

Manufacturer part number: 174747.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

Three Phase Input/Output

Description

LEESON® Washguard® AC Inverter, Three Phase Input/Output, Series: Micro, 400 to 480 VAC, 14 A, 10 hp, 10.26 in Width, 8.35 in D, 11-3/4 in Height, NEMA 4/IP65 Enclosure, Stainless Steel

Standards

UL Listed

Features

No external cooling fan required
Must be protected from caustic agents
16 bit intel microprocessor
Choice of using factory quick start program settings
Output frequency up to 120 Hz
150% overload capacity for one minute
Speed reference signals potentiometer, 0 to 10 VDC/4 to 20 mA inputs
Output signal 0 to 10 VDC speed/load
Two auxiliary contacts, one form C relay and two open collector outputs
Four preset speeds
Slip compensation and password protection
Adjustable carrier frequency
Adjustable acceleration and deceleration times
Forward and reverse direction
Time and voltage adjustable DC braking
Password protected
Constant torque with adjustable current limit
Steel enclosure with aluminum heat sinks
Dynamic braking kits available

Specifications

Amperage Rating:	14 A
Depth:	8.35 in
Enclosure Type:	NEMA 4/IP65
Height:	11-3/4 in
Horsepower:	10 hp
Material:	Stainless Steel
Series:	Micro
Voltage Rating:	400 to 480 VAC
Width:	10.26 in
