Actual Product May Vary From Image

1755 REX

Name: 1755 REX
Brand: Rexnord
SKU: 1755 REX
Price: 19.14 USD
Availability: OutOfStock

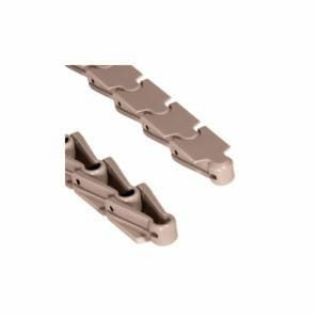

Rexnord® TableTop® 1755 Multi-Flex Flat Top Conveyor Chain With Stainless Steel Pin, 10 ft OAL, 1.58 in Pitch, 1.09 in W, Acetal

Manufacturer: Rexnord

Manufacturer part number: 1755

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$19.14

Qty:

Product Details

Brand Name

Rexnord®

Type

Multi-Flex

Description

1755 series chains are 40 mm pitch and have an overall thickness of 0.62 in. Multiflex chains have a smooth top and are versatile enough to convey everything from individual units as well as packaged and cased goods. Can operate on corner disks for longer conveyor lengths. Chain is available in different chain materials for different friction, wear and speed characteristics. Chain is designed to operate on standard 1755 series sprockets for true chain/sprocket interaction.

Rexnord® TableTop® Flat Top Conveyor Chain, Multi-Flex, Series: 1755, 1.58 in Pitch, 0.16 in Pin Diameter, 1.09 in Plate Width, 5.38 in Minimum Side-Flex Radius, 1-1/2 in Minimum Back-Flex Radius, 200 lb Tensile Strength, 10 ft Overall Length, Acetal, Tan

Application

Food Processing, Beverage, Unit Handling and Industrial Applications

Standards

FDA 21 CFR 177

Features

Engineered for a wide range of conveyor applications for many industries
Reduce container tipping and jams at transfer points
Side-flexing options for ease of installation, reduced floor space
TableTop® chain for high-strength and high-speed applications
Low-friction patented blend of acetal that provides good wear resistance and long service life due to the low coefficient of friction

Specifications

Finish:	Tan
Material:	Acetal
Minimum Back-Flex Radius:	1-1/2 in
Minimum Side-Flex Radius:	5.38 in
Overall Length:	10 ft
Pin Diameter:	0.16 in
Pitch:	1.58 in
Plate Width:	1.09 in
Series:	1755
Tensile Strength:	200 lb
