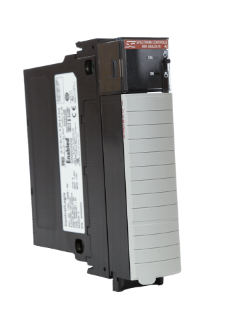

Actual Product May Vary From Image

1756-RMS-SC SPC

Name: 1756-RMS-SC SPC
Brand: Spectrum Controls
SKU: 1756-RMS-SC SPC
Price: 4,488.00 USD
Availability: OutOfStock

ControlLgx 8 CHNL ANLG Input

Manufacturer: Spectrum Controls

Manufacturer part number: 1756-RMS-SC

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$4,488.00

Qty:

Product Details

Brand Name

Spectrum Controls

Description

Extend the life of critical components within your manufacturing processes with our power monitoring input module. The RMS module simultaneously measures single-phase volts AC RMS and amps AC RMS and calculates real power, apparent power, reactive power, and leading or lagging power factor. This module enables your controller can respond in real time to power variances outside of your predetermined envelope of proper operation. The RMS module easily mounts into a standard ControlLogix? rack. This module comes with 24/7 TechConnect support from Rockwell Automation.

Standards

ANSI 12.R.01 (Class 1 Div 2, ABCD), UL 61010-1, CE

Features

8-channels voltage and current. For each channel (inputs from CT dropping resistor and PT) the module provides: real power, apparent power, reactive power, power factor, RMS voltage, and RMS current.

Specifications

Connection Cables:	Shielded, twisted-pair 22 to 14 AWG (2.0 mm) stranded maximum 3/64-inch (1.2 mm) insulation maximum Order a 1756-TBCH separately
Country of Origin:	MUL
Power Supply:	AC/DC
Sub Brand:	ControlLgx

Resources

Spec Sheet
