175GXQSJD125E BSF

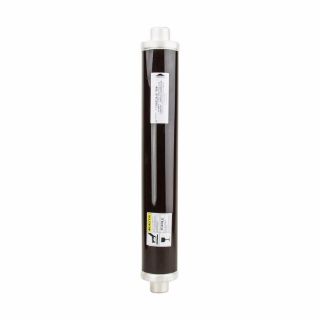

Picture of 175GXQSJD125E BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
175GXQSJD125E
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Bussmann

Type

E-Rated

Description

Bussmann series DIN dimensioned E-rated medium voltage power fuses with striker for indoor use. Striker provides visual indication of fuse operation or a means to activate a remote monitoring system.
Bussmann Medium Voltage Fuse, E-Rated, 125 A, 17.5 kV, 65 kA Interrupt, Cartridge Terminal, DIN Mount, 3.5 in Dia x 21.1 in L Body Size

Application

For primary protection of medium voltage transformers and switch gear and medium voltage feeder circuits, utility - substations, utility transmission and distribution

Standards

ANSI C37.46

Features

  • Cool running for lower watts loss
  • 100% X-ray inspected to help assure fuse integrity
  • Striker provides visual indication of fuse operation or a means to activate a remote monitoring system

Specifications

Amperage Rating:125 A
Body Size:3.5 in Dia x 21.1 in L
Interrupt Rating:65 kA
Mounting Type:DIN
Terminal Type:Cartridge
Voltage Rating:17.5 kV
