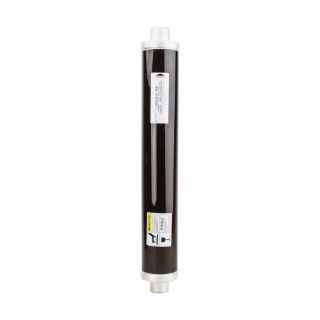

Actual Product May Vary From Image

175GXQSJD150E BSF

Name: 175GXQSJD150E BSF
Brand: Bussmann
SKU: 175GXQSJD150E BSF
Availability: OutOfStock

Bussmann 175GXQSJD150E E-Rated Medium Voltage Fuse, 150 A, 17.5 kV, 65 kA Interrupt

Manufacturer: Bussmann

Manufacturer part number: 175GXQSJD150E

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

E-Rated

Description

Bussmann series DIN dimensioned E-rated medium voltage power fuses with striker for indoor use. Striker provides visual indication of fuse operation or a means to activate a remote monitoring system.

Bussmann Medium Voltage Fuse, E-Rated, 150 A, 17.5 kV, 65 kA Interrupt, Cartridge Terminal, DIN Rail Mount, 3.5 in Dia x 21.1 in L Body Size

Application

For primary protection of medium voltage transformers and switch gear and medium voltage feeder circuits, substations/utility transmission and distribution

Standards

ANSI C37.46

Features

Cool running for lower watts loss
100% X-ray inspected to help assure fuse integrity
Striker provides visual indication of fuse operation or a means to activate a remote monitoring system

Specifications

Amperage Rating:	150 A
Body Size:	3.5 in Dia x 21.1 in L
Interrupt Rating:	65 kA
Mounting Type:	DIN Rail
Terminal Type:	Cartridge
Voltage Rating:	17.5 kV
