1761L16BBB AB

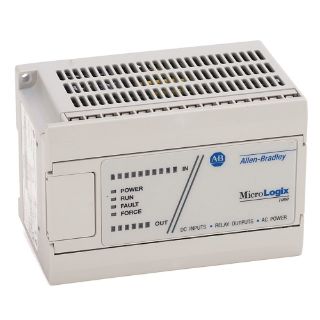

MicroLogix 1000 16 Point Controller
Manufacturer: Allen-Bradley
Manufacturer part number: 1761-L16BBB
Availability: Ships in 4-6 days.
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
Estimated dates are contingent upon manufacturer stock.
Price on Request

Product Details

Brand Name

Allen-Bradley

Type

Controller

Description

MicroLogix 1000, 24V dc power, (10) 24V dc digital inputs, (4) MOSFET sourcing outputs, (2) relay outputs

Standards

CE,CSA,C-TICK,GOST,KC,MARINE

Features

Built-in EEPROM

Specifications

Class:controller
Communications:DF1
Controllers:MicroLogix 1000, 24V dc power, (10) 24V dc digital inputs, (4) MOSFET sourcing outputs, (2) relay outputs
Depth:40 mm
Display:No
Enclosure:IP20
Height:80 mm
Input:10x24V DC
Input Signal:24V DC
Interface:RS-232
Memory:1KB
Mounting:DIN Rail, Panel Mount
Number of Channels:10 I/P, 6 O/P
Operating Temperature:0... 55 °C (32...131 °F)
Output:2 relay - 4x24V DC source
Output Signal:(2) Relay and (4) Sourcing MOSFET
Power Supply:24V DC
Sub Brand:MicroLogix 1000
Width:120 mm

Resources

Spec Sheet
