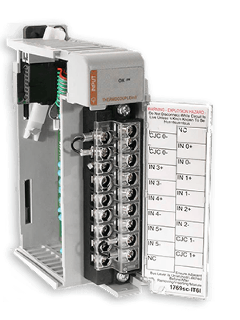

Actual Product May Vary From Image

1769SC-IT6I SPC

Name: 1769SC-IT6I SPC
Brand: Spectrum Controls
SKU: 1769SC-IT6I SPC
Price: 1,629.00 USD
Availability: OutOfStock

CompactLgx 6-CHNL ISOL THRMCPL

Manufacturer: Spectrum Controls

Manufacturer part number: 1769SC-IT6I

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,629.00

Qty:

Product Details

Brand Name

Spectrum Controls

Description

Provides full channel-to-channel isolated thermocouple or millivolt input capability for noisy environments. The module replaces thermocouple or millivolt modules without compromising price or performance. The module has six channels that support twelve individually programmable input types with open circuit detection and high/low alarms for each channel. This module comes with 24/7 TechConnect support from Rockwell Automation.

Standards

UL/cUL Listed ANSI ISA 12.12.01 (Class I, Div 2, Groups ABCD), CE

Features

Six channels of thermocouple or millivolt input, twelve output types

Specifications

Connection Cables:	For TC inputs: shielded, twisted-pair TC extension wire; For mV inputs: Belden 8761 or equivalent
Country of Origin:	MUL
Input Signal:	6 TC, Millivolt
Number of Channels:	6
Operating Temperature:	-0 °C - 60 °C (32 °F - 140 °F)
Sub Brand:	CompactLgx

Resources

Spec Sheet
