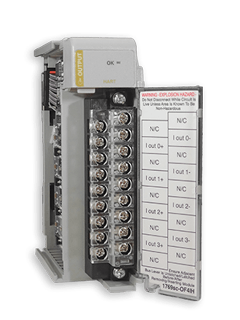

Actual Product May Vary From Image

1769SC-OF4IH SPC

Name: 1769SC-OF4IH SPC
Brand: Spectrum Controls
SKU: 1769SC-OF4IH SPC
Price: 1,794.00 USD
Availability: OutOfStock

CompactLgx 4-CHNL ISOL ANLG Out w/ HART

Manufacturer: Spectrum Controls

Manufacturer part number: 1769SC-OF4IH

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,794.00

Qty:

Product Details

Brand Name

Spectrum Controls

Description

Provides four channels of isolated Analog + Hart output and full analog capability in a single module. Exploit the power of existing HART field instruments and to build the foundation of a powerful control and asset management system. Easily obtain real-time analog and HART data without additional wiring, external bridge devices, or hand-held communicators. DTM and CONNECTS support provides an interface to your asset management software. This module comes with 24/7 TechConnect support from Rockwell Automation.

Standards

UL/CUL (Class I, Div 2, Groups ABCD) CE

Features

full analog capability and the benefit of HART protocol in an I/O module. These modules offer four channels of analog input and output—each easily configured for voltage or current signals

Specifications

Country of Origin:	MUL
Input Signal:	0-20 mA, 4-20 mA
Number of Channels:	8
Operating Temperature:	0° to 60°C (32° to 140°F)
Output Signal:	ISOL ANLG Out w/ HART
Sub Brand:	CompactLgx

Resources

Spec Sheet
