17D22-E LEV

Name: 17D22-E LEV
Brand: Leviton Manufacturing
SKU: 17D22-E LEV
Availability: OutOfStock

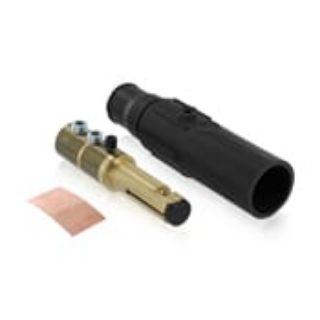

Leviton® 17D22-E 1-Pole Cam Type Taper Nose Detachable Male Plug, 600 VAC, 690 A, 350 to 500 kcmil Wire, Double Set Screw

Manufacturer: Leviton Manufacturing

Manufacturer part number: 17D22-E

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

1-Pole Cam Type Taper Nose

Description

The 17 series taper nose connectors withstand grueling, heavy duty industrial use. Applications include generator test stations, water purification plants, electro chemical machining equipment and other general industrial uses.

Leviton® Detachable Male Plug, 1-Pole Cam Type Taper Nose, Series: 17 Series, 600 VAC, 690 A, 350 to 500 kcmil Wire, Double Set Screw, Brass Contact, Santoprene TPV Housing, Threaded Mount, Black, 8.75 in L x 2.39 in H

Application

Electro Chemical Machining Equipment, Generator Test Stations, Water Purification Plants and Industrial Applications

Features

Color coded for easy phase identification
High conductivity positive, vibration proof connection provided by double cam design
Shatter and crack proof, high durometer thermoplastic vulcanizate (TPV) or neoprene rubber
Self-compensating for wear slit in male contact provides spring action for longer usage
Hard thermoplastic screw provides strength and durability
Intermateable with competitive cam type products and can be retrofitted to existing locations and power distribution systems

Includes

Contact, Insulator

Specifications

Amperage Rating:	690 A
Color:	Black
Connection Type:	Double Set Screw
Contact Material:	Brass
Country of Origin:	MX
Dimensions:	8.75 in L x 2.39 in H
Housing Material:	Santoprene TPV
Mounting Type:	Threaded
Series:	17 Series
Specifications:	1-Pole
Voltage Rating:	600 VAC
Wire Size:	350 to 500 kcmil
