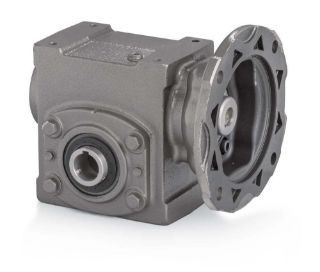

Actual Product May Vary From Image

17QZ60H56 DOD

Name: 17QZ60H56 DOD
Brand: Dodge
SKU: 17QZ60H56 DOD
Price: 1,619.58 USD
Availability: OutOfStock

TIGEAR-2 E-Z KLEEN REDUCER

Manufacturer: Dodge

Manufacturer part number: 17QZ60H56

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$1,619.58

Qty:

Product Details

Base to Output Center Height:	1.9900
Base to Output Center Height (Unit):	INCH
Bore Diameter (Output):	1.0000
Bore Diameter (Output) (Unit):	INCH
Bore Length:	5.4100
Bore Length (Unit):	INCH
Case Size:	17
Center Distance:	1.7500
Center Distance (Unit):	INCH
Horsepower Rating Input:	0.4300
Horsepower Rating Input (Unit):	HORSEPOWER
Horsepower Rating Output:	0.2700
Horsepower Rating Output (Unit):	HORSEPOWER
Housing Material:	Cast Iron
Input Style:	Quill
Lubrication:	PAG, Standard Temperature
Motor Compatibility:	NEMA Motor, 56C Frame
Mounting Bolt Pattern Length:	4.1900
Mounting Bolt Pattern Length (Unit):	INCH
Mounting Bolt Pattern Width:	2.7500
Mounting Bolt Pattern Width (Unit):	INCH
Nominal Ratio:	60.0000
Output Shaft:	Hollow
Output Shaft Center to Input Motor Mounting Face Distance:	4.9000
Output Shaft Center to Input Motor Mounting Face Distance (Unit):	INCH
Output Style:	Hollow
Overhung Load:	1190
Overhung Load (Unit):	POUND_FORCE
Paint Type:	Stainless Epoxy
Rated Torque Output:	576
Rated Torque Output (Unit):	INCH_POUND
Seal Type:	Two-Piece Harsh Duty
Suitable For Washdown:	Yes
Thermal Horsepower Rating:	0.8000
Thermal Horsepower Rating (Unit):	HORSEPOWER
