Actual Product May Vary From Image

17S20L DOD

Name: 17S20L DOD
Brand: Dodge
SKU: 17S20L DOD
Price: 781.55 USD
Availability: OutOfStock

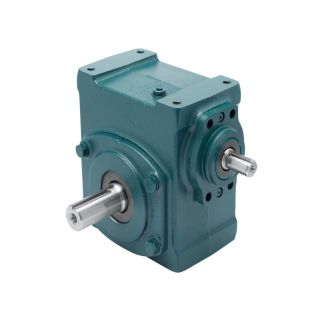

17S20L TIGEAR-2 REDUCER

Manufacturer: Dodge

Manufacturer part number: 17S20L

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$781.55

Qty:

Product Details

Base to Output Center Height:	1.9900
Base to Output Center Height (Unit):	INCH
Case Size:	17
Center Distance:	1.7500
Center Distance (Unit):	INCH
Center to End of Shaft Distance:	4.3100
Center to End of Shaft Distance (Unit):	INCH
Horsepower Rating Input:	1.0300
Horsepower Rating Input (Unit):	HORSEPOWER
Horsepower Rating Output:	0.8400
Horsepower Rating Output (Unit):	HORSEPOWER
Housing Material:	Cast Iron
Input Style:	Separate
Lubrication:	PAG, Standard Temperature
Mounting Bolt Pattern Length:	4.1900
Mounting Bolt Pattern Length (Unit):	INCH
Mounting Bolt Pattern Width:	2.7500
Mounting Bolt Pattern Width (Unit):	INCH
Nominal Ratio:	20.0000
Output Shaft:	Left (Solid A)
Output Style:	Left
Overhung Load:	1190
Overhung Load (Unit):	POUND_FORCE
Paint Type:	Standard
Rated Torque Output:	602
Rated Torque Output (Unit):	INCH_POUND
Seal Type:	Single-Lip Contact
Shaft Diameter Input:	0.6250
Shaft Diameter Input (Unit):	INCH
Shaft Diameter Output:	0.8750
Shaft Diameter Output (Unit):	INCH
Shaft Length Input:	1.1500
Shaft Length Input (Unit):	INCH
Shaft Length Output:	1.7400
Shaft Length Output (Unit):	INCH
Suitable For Washdown:	No
Thermal Horsepower Rating:	1.5800
Thermal Horsepower Rating (Unit):	HORSEPOWER
