18-5P09-6FA3 BBM

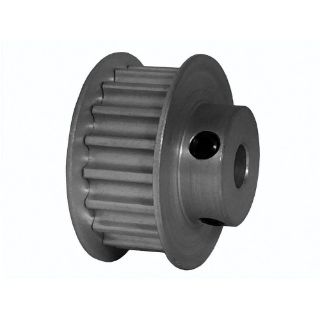

B&B Manufacturing Powerhouse™ 18-5P09-6FA3 Type 6F Timing Pulley, 1/4 in Finished Bore, 1.083 in OD, 18 Grooves, 1.128 in Dia Pitch, 0.546 in W Face
Manufacturer part number: 18-5P09-6FA3
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CRUSH BEARINGS & DRIVES - LEXINGTON
0 0
Loading...
$17.30

Product Details

Brand Name

B&B Manufacturing

Type

Type 6F

Description

B&B Manufacturing offers Powerhouse™ pulleys that are designed to be fully compatible with the PowerGrip® GT belts and Powerhouse™ belts. They are available in a variety of metric pitches including 2 mm, 3 mm, 5 mm, 8 mm and 14 mm. These pulleys are manufactured in aluminum and steel at a variety of types, outside diameters, belt widths and tooth counts. These timing pulleys are offered with minimum plain bores, finished bores and taper-lock bushed.
B&B Manufacturing Powerhouse™ Timing Pulley, Type 6F, Finished Bore, 1/4 in Bore Dia, 1.083 in Outside Dia, 1.128 in, 18 Grooves, 5 mm Pitch, 0.546 in Face Width, 1-1/4 in Flange Dia, 0.688 in Hub Dia, 0.796 in Overall Length, For Use With: 9 mm W PowerGrip® GT2® and PowerGrip® GT3® Belts, Aluminum, Clear Anodized

Standards

REACH | RoHS Compliant | PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Specifications

Bore Diameter:1/4 in
Bore Type:Finished
Country of Origin:IN
Face Width:0.546 in
Finish:Clear Anodized
Flange Diameter:1-1/4 in
Hub Diameter:0.688 in
Material:Aluminum
Number of Grooves:18
Outside Diameter:1.083 in
Overall Length:0.796 in
Pitch:5 mm
Pitch Diameter:1.128 in
Suitable For Use With:9 mm W PowerGrip® GT2® and PowerGrip® GT3® Belts
