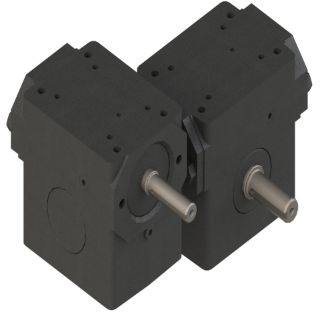

Actual Product May Vary From Image

1801 2000/1 WR DOUBLE OUTPUT HUB

Name: 1801 2000/1 WR DOUBLE OUTPUT HUB
SKU: 1801 2000/1 WR DOUBLE OUTPUT HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-18417 1800 Double Reduction Right Angle Worm Gear Reducer, Shaft Input, Shaft Output, 0.036 hp Input, 2000:1 Gear, 0.88 rpm Maximum Output, 748 in-lb Output Torque Rating

Manufacturer part number: 0230-18417

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Double Reduction Right Angle

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle, Series: 1800, 2000:1 Gear Ratio, 0.036 hp Input, Shaft Input, Shaft Output, 0.5 in Dia x 1.76 in L Input, 0.75 in Dia x 1.78 in L Output, 0.88 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 748 in-lb Output, 1-3/4 in Centre Distance, 1/8 x 1/16 in Input, 3/16 x 3/32 in Output Keyway, 28.8 % Efficiency, Conventional Oil Lubrication, Cast Iron, 7 in W

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	1-3/4 in
Dimensions:	7 in W
Efficiency:	28.8 %
Gear Ratio:	2000:1
Horsepower:	0.036 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	0.5 in Dia x 1.76 in L
Input Type:	Shaft
Keyway Size:	1/8 x 1/16 in Input, 3/16 x 3/32 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	0.88 rpm
Output Size:	0.75 in Dia x 1.78 in L
Output Type:	Shaft
Series:	1800
Torque Rating:	748 in-lb Output
