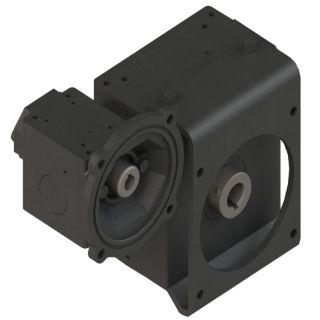

Actual Product May Vary From Image

1806 3600/1 WR 56C 1.000 (SIDE MT) HUB

Name: 1806 3600/1 WR 56C 1.000 (SIDE MT) HUB
SKU: 1806 3600/1 WR 56C 1.000 (SIDE MT) HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-18840 1800 Double Reduction Right Angle Worm Gear Reducer, C-Face Quill Input, Hollow Bore Output, 0.023 hp Input, 3600:1 Gear, 0.49 rpm Maximum Output, 666 in-lb Output Torque Rating

Manufacturer part number: 0230-18840

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Double Reduction Right Angle

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle, Series: 1800, 3600:1 Gear Ratio, 0.023 hp Input, C-Face Quill Input, Hollow Bore Output, 5/8 in Dia Input, 1 in Dia Output, 0.49 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 666 in-lb Output Torque, 1-3/4 in Centre Distance, 22.2 % Efficiency, Conventional Oil Lubrication, Side Mounting, Cast Iron

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	1-3/4 in
Efficiency:	22.2 %
Gear Ratio:	3600:1
Horsepower:	0.023 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia
Input Type:	C-Face Quill
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Mounting Type:	Side
Output Maximum Speed:	0.49 rpm
Output Size:	1 in Dia
Output Type:	Hollow Bore
Series:	1800
Torque Rating:	666 in-lb Output
