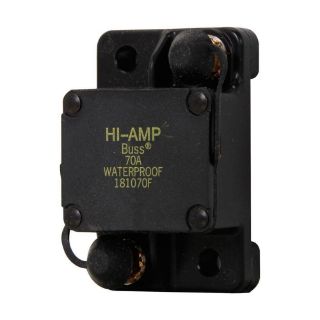

Actual Product May Vary From Image

181080F-01-1 BSF

Name: 181080F-01-1 BSF
Brand: Bussmann
SKU: 181080F-01-1 BSF
Availability: OutOfStock

Bussmann 181080F-01-1 Hi-Amp Circuit Breaker, 30 VDC, 80 A, 3 kAIC at 30 VDC Interrupt, 1 Poles, Thermal Trip

Manufacturer: Bussmann

Manufacturer part number: 181080F-01-1

Availability: Expected Leadtime 28 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Hi-Amp

Description

Type I, Type II and Type III circuit breakers match the ATM and ATC fuse footprint. Ultra-thin, to fit in tight spaces, they're the smallest automotive circuit breakers on the market. Provide voltage and current limiting functionality and are designed for the on- and off-highway requirements of trucks, RVs, construction, agriculture, ATV and material handling equipment.

Bussmann Circuit Breaker, Hi-Amp, 30 VDC, 80 A, 3 kAIC at 30 VDC Interrupt, Thermal Trip, 1 Pole, 1/4-28 Threaded Stud Terminal, IP67, Surface Mount, -25 to 180 deg F, 1.9 in W x 1.44 in D x 2.89 in H, Thermoplastic, Black

Application

Marine Vessels and Equipment, Engine Compartment, Bilge Area and Other Applications

Standards

RoHS Compliant

Specifications

Amperage Rating:	80 A
Color:	Black
Country of Origin:	MX
Dimensions:	1.9 in W x 1.44 in D x 2.89 in H
Enclosure Type:	IP67
Interrupt Rating:	3 kAIC at 30 VDC
Material:	Thermoplastic
Mounting Type:	Surface
Number of Poles:	1
Temperature Rating:	-25 to 180 deg F
Terminal Type:	1/4-28 Threaded Stud
Trip Type:	Thermal
Voltage Rating:	30 VDC
