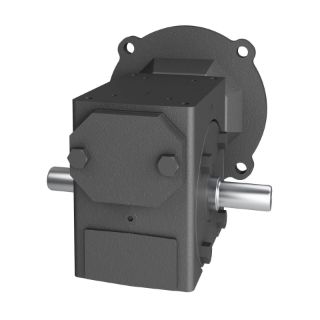

Actual Product May Vary From Image

184 80/1 A WR 143TC HUB

Name: 184 80/1 A WR 143TC HUB
SKU: 184 80/1 A WR 143TC HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-01493 180PCX Right Angle Single Reduction Style A Worm Gear Reducer, C-Face Quill Input, Shaft Output, 1/4 hp Input, 80:1 Gear, 21.9 rpm Maximum Output, 395 in-lb Output Torque Rating

Manufacturer part number: 0230-01493

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style A

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: 180PCX, 80:1 Gear Ratio, 1/4 hp Input, C-Face Quill Input, Shaft Output, 7/8 in Dia Input, 0.75 in Dia x 1.78 in L Output, 21.9 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 395 in-lb Output, 1-3/4 in Centre Distance, 3/16 x 3/32 in Output Keyway, 57.5 % Efficiency, Conventional Oil Lubrication, Cast Iron, 7 in W

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	1-3/4 in
Dimensions:	7 in W
Efficiency:	57.5 %
Gear Ratio:	80:1
Horsepower:	1/4 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	7/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	3/16 x 3/32 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	21.9 rpm
Output Size:	0.75 in Dia x 1.78 in L
Output Type:	Shaft
Series:	180PCX
Torque Rating:	395 in-lb Output
