18CH706 MSG

Name: 18CH706 MSG
Brand: Martin Sprocket & Gear
SKU: 18CH706 MSG
Availability: OutOfStock

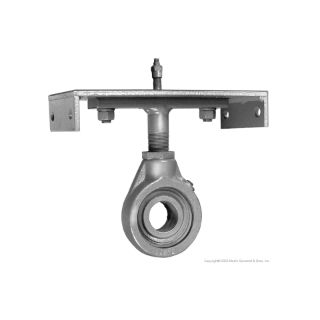

Martin 18CH706 Conveyor Hanger, 70 Style, 18 in Dia Conveyor, 3 in Coupling

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 18CH706

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Martin

Description

No. 70 hangers are furnished with a heavy duty, permanently lubricated and sealed, self-aligning ball bearing which permit temperatures up to 245 deg F. and will allow for up to 4 deg shaft misalignments. This hanger is mounted inside the trough. Grease fittings can be furnished if specified.

Martin Conveyor Hanger, 70 Style, 18 in Conveyor Diameter, 3 in Coupling, 3-1/2 in Mounting Hole Center, 1/2 x 1-3/4 in Bolt, 19 in Top Frame Length, 6 in Top Frame Width, 1/2 in Top Frame Thickness, 4 Mounting Bolts, 11/16 x 1-11/16 in Slot, Steel

Standards

CEMA Standard

Features

Laser cut flat pieces to ensure consistent finish and high quality

Specifications

Bolt Size:	1/2 x 1-3/4 in
Conveyor Diameter:	18 in
Country of Origin:	US
Coupling Size:	3 in
Material:	Steel
Mounting Hole Center:	3-1/2 in
Number of Mounting Bolts:	4
Slot Size:	11/16 x 1-11/16 in
Style:	70
Top Frame Length:	19 in
Top Frame Thickness:	1/2 in
Top Frame Width:	6 in
