18D24-E LEV

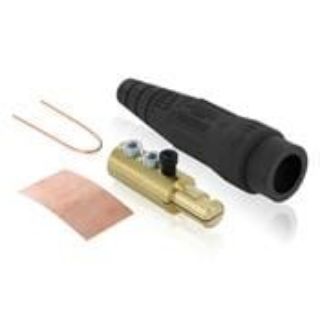

Leviton® 18D24-E 18 Series Ball Nose Cam Type Detachable Plug With 18D24-C Contact and 18SDM-14E Insulator, 600 VAC, 400 A, 1/0 to 4/0 AWG Wire, Male/Double Set Screw Connection
Manufacturer: Leviton Manufacturing
Manufacturer part number: 18D24-E
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Leviton®

Type

Ball Nose Cam Type Detachable

Description

Leviton® single pole detachable plugs are designed to provide superior service and durability, even under the most severe operating conditions. Featuring solid brass contacts and TPV insulators, these devices are ideal for use with equipment associated with concerts, sound stages, movie-making, television production and many other power distribution applications.
Leviton® Plug, Ball Nose Cam Type Detachable, Series: 18 Series, 600 VAC, 400 A, 1/0 to 4/0 AWG Wire, Male/Double Set Screw Connection, Brass Contact, Santoprene™ TPV Housing Material, Specifications: 1-Pole, 1.84 in Dia, Commercial Grade, Black, 1.84 in Dia x 6.16 in L Dimensions

Application

Broadcast Industry, Commercial Applications, Indoor/Outdoor Application and Welding Industry

Standards

CSA 152105 | UL E13399

Features

  • Ball nose pin and sleeve type plugs, receptacles and connectors features wear resistant brass contact to offer spring action for longer usage
  • Self compensating for wear
  • Insulated by shatter and crack resistant Santoprene TPV making it ideal for both outdoor and indoor applications
  • Color-coded insulating sleeves provide fast and easy phase identification
  • Self compensating for wear slit in male contact provides spring action for longer usage
  • Quick connect/disconnect
  • High conductivity positive, vibration-proof connection provided by cam design
  • Copper wire strain relief
  • Locking and reinforcing ring won't melt, break or crack
  • 600 VAC voltage rating

Specifications

Amperage Rating:400 A
Color:Black
Connection Type:Male/Double Set Screw
Contact Material:Brass
Country of Origin:MX
Dimensions:1.84 in Dia x 6.16 in L
Housing Material:Santoprene TPV
Series:18 Series
Specifications:1-Pole, 1.84 in Dia, Commercial Grade
Voltage Rating:600 VAC
Wire Size:1/0 to 4/0 AWG
