Home / 18D24-O LEV

18D24-O LEV

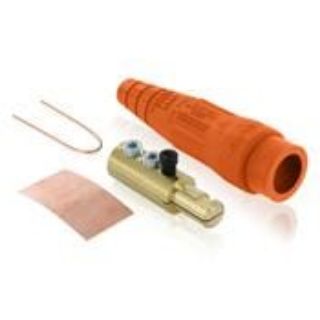

Picture of 18D24-O LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton
Manufacturer part number:
18D24-O
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Leviton®

Type

Ball Nose Cam Type Detachable

Description

Leviton® single pole detachable plugs are designed to provide superior service and durability, even under the most severe operating conditions. Featuring solid brass contacts and TPV insulators, these devices are ideal for use with equipment associated with concerts, sound stages, movie-making, television production and many other power distribution applications.
Leviton® Plug, Ball Nose Cam Type Detachable, Series: 18 Series, 600 VAC, 400 A, 1/0 to 4/0 AWG Wire, Male/Double Set Screw Connection, Brass Contact, Santoprene™ TPV Housing Material, Specifications: 1-Pole, 1.84 in Dia, Commercial Grade, Orange, 1.84 in Dia x 6.16 in L Dimensions

Application

Broadcast Industry, Commercial, Indoor/Outdoor and Welding Industry Applications

Standards

UL File No E13399 | CSA File No. 152105

Features

  • Ball nose pin and sleeve type plugs, receptacles and connectors features wear-resistant brass contact to offer spring action for longer usage
  • Self compensating for wear
  • Insulated by shatter and crack-resistant Santoprene™ TPV making it ideal for both outdoor and indoor applications
  • Color coded insulating sleeves provide fast and easy phase identification
  • Self compensating for wear slit in male contact provides spring action for longer usage
  • Quick connect/disconnect
  • High conductivity positive, vibration proof connection provided by cam design
  • Copper wire strain-relief
  • Locking and reinforcing ring won't melt, break or crack
  • 600 VAC voltage rating

Specifications

Amperage Rating:400 A
Color:Orange
Connection Type:Male/Double Set Screw
Contact Material:Brass
Country of Origin:MX
Dimensions:1.84 in Dia x 6.16 in L
Housing Material:Santoprene™ TPV
Series:18 Series
Specifications:1-Pole, 1.84 in Dia, Commercial Grade
Voltage Rating:600 VAC
Wire Size:1/0 to 4/0 AWG
