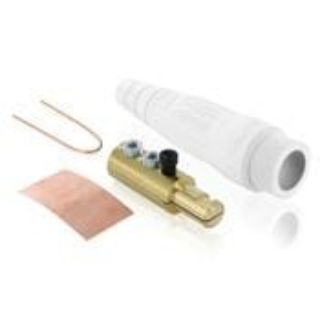

Actual Product May Vary From Image

18D24-W LEV

Name: 18D24-W LEV
Brand: Leviton Manufacturing
SKU: 18D24-W LEV
Availability: OutOfStock

Rhino-Hide® 18D24-W 18 Series Cam Type Detachable Male Plug, 600 VAC, 400 A, 1/0 to 4/0 AWG Wire, Double Set Screw Connection, NEMA 3R NEMA Rating

Manufacturer: Leviton Manufacturing

Manufacturer part number: 18D24-W

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Cam Type Detachable Male

Description

Rhino-Hide® Plug, Cam Type Detachable Male, Series: 18 Series, 600 VAC, 400 A, 1/0 to 4/0 AWG Wire, Double Set Screw Connection, Brass Contact, Santoprene™ TPV Housing Material, NEMA 3R NEMA Rating, Threaded Mounting, Specifications: 1-Pole, 86 deg F, White, 1.84 in Dia x 6.16 in L Dimensions

Application

For broadcasting and welding industries, commercial and industrial applications

Standards

UL File No E13399 | CSA File No. 152105

Features

Color coded for easy phase identification
High conductivity positive, vibration proof connection provided by double cam design
Shatter and crack proof high durometer thermoplastic elastomer or neoprene rubber
Self compensating for wear slit in male contact provides spring action for longer usage
Hard thermoplastic screw provides strength and durability
Intermateable with competitive cam type products and can be retrofitted to existing locations and power distribution systems
Ball nose configuration
Copper wire strain-relief
Industrial grade plug

Specifications

Amperage Rating:	400 A
Color:	White
Connection Type:	Double Set Screw
Contact Material:	Brass
Country of Origin:	MX
Dimensions:	1.84 in Dia x 6.16 in L
Housing Material:	Santoprene™ TPV
Mounting Type:	Threaded
NEMA Rating:	NEMA 3R
Series:	18 Series
Specifications:	1-Pole
Temperature Rating:	86 deg F
Voltage Rating:	600 VAC
Wire Size:	1/0 to 4/0 AWG
