Actual Product May Vary From Image

18D31-R LEV

Name: 18D31-R LEV
Brand: Leviton Manufacturing
SKU: 18D31-R LEV
Availability: OutOfStock

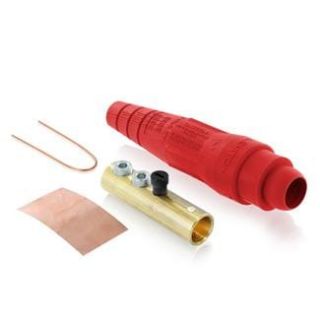

Rhino-Hide® 18D31-R 18 Series Cam Type Detachable Female Plug, 600 VAC, 300 A, 2 to 2/0 AWG Wire, Double Set Screw Connection, NEMA 3R

Manufacturer: Leviton Manufacturing

Manufacturer part number: 18D31-R

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Cam Type Detachable Female

Description

Rhino-Hide® Plug, Cam Type Detachable Female, Series: 18 Series, 600 VAC, 300 A, 2 to 2/0 AWG Wire, Double Set Screw, Brass Contact, Santoprene TPV Housing, NEMA 3R, Threaded Mount, 1-Pole, 86 deg F, Red, 1.84 in Dia x 6.77 in L

Application

For broadcasting and welding industries

Standards

UL Listed | CSA Certified

Features

Color-coded for easy phase identification
High conductivity positive, vibration proof connection provided by double cam design
Shatter and crack proof high durometer thermoplastic elastomer (TPV) or neoprene rubber
Self compensating for wear slit in male contact provides spring action for longer usage
Hard thermoplastic screw provides strength and durability
Intermateable with competitive cam type products and can be retrofitted to existing locations and power distribution systems
Ball nose configuration
Copper wire strain-relief
Industrial grade plug

Specifications

Amperage Rating:	300 A
Color:	Red
Connection Type:	Double Set Screw
Contact Material:	Brass
Country of Origin:	MX
Dimensions:	1.84 in Dia x 6.77 in L
Housing Material:	Santoprene TPV
Mounting Type:	Threaded
NEMA Rating:	NEMA 3R
Series:	18 Series
Specifications:	1-Pole
Temperature Rating:	86 deg F
Voltage Rating:	600 VAC
Wire Size:	2 to 2/0 AWG
