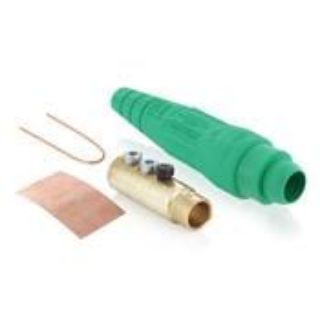

Actual Product May Vary From Image

18D33-G LEV

Name: 18D33-G LEV
Brand: Leviton Manufacturing
SKU: 18D33-G LEV
Availability: OutOfStock

Leviton® 18D33-G 18 Series Ball Nose Cam Type Detachable Plug With 18D33-C Contact and 18SDF-14G Insulator, 600 VAC, 400 A, 1/0 to 4/0 AWG Wire, Female/Double Set Screw Connection

Manufacturer: Leviton Manufacturing

Manufacturer part number: 18D33-G

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Ball Nose Cam Type Detachable

Description

Leviton® single pole detachable plugs are designed to provide superior service and durability, even under the most severe operating conditions. Featuring solid brass contacts and TPV insulators, these devices are ideal for use with equipment associated with concerts, sound stages, movie-making, television production and many other power distribution applications.

Leviton® Plug, Ball Nose Cam Type Detachable, Series: 18 Series, 600 VAC, 400 A, 1/0 to 4/0 AWG Wire, Female/Double Set Screw Connection, Brass Contact, Santoprene™ TPV Housing Material, Specifications: 1-Pole, 1.84 in Dia, Commercial Grade, Green, 1.84 in Dia x 6.77 in L Dimensions

Application

Broadcast Industry, Commercial, Indoor/Outdoor and Welding Industry Applications

Standards

UL File No E13399 | CSA File No. 152105

Features

Ball nose pin and sleeve type plugs, receptacles and connectors features wear-resistant brass contact to offer spring action for longer usage
Self compensating for wear
Insulated by shatter and crack-resistant Santoprene™ TPV making it ideal for both outdoor and indoor applications
Color coded insulating sleeves provide fast and easy phase identification
Self compensating for wear slit in male contact provides spring action for longer usage
Quick connect/disconnect
High conductivity positive, vibration proof connection provided by cam design
Copper wire strain-relief
Locking and reinforcing ring won't melt, break or crack
600 VAC voltage rating

Specifications

Amperage Rating:	400 A
Color:	Green
Connection Type:	Female/Double Set Screw
Contact Material:	Brass
Country of Origin:	MX
Dimensions:	1.84 in Dia x 6.77 in L
Housing Material:	Santoprene™ TPV
Series:	18 Series
Specifications:	1-Pole, 1.84 in Dia, Commercial Grade
Voltage Rating:	600 VAC
Wire Size:	1/0 to 4/0 AWG
