18HF610-R MSG

Helicoid flights are formed in a special rolling machine by forming a steel strip into a continuous one-piece helix of the desired diameter, pitch and thickness to fit conveyor screw pipes. The helicoid flight is tapered in cross section, with the thickness at the inner edge approximately twice the thickness of the outer edge. Stock helicoid flight screw diameter from 4 in to 18 in and thickness from 3/16 in to 5/16 in. Right hand flight helix wraps around the pipe in a clockwise direction.

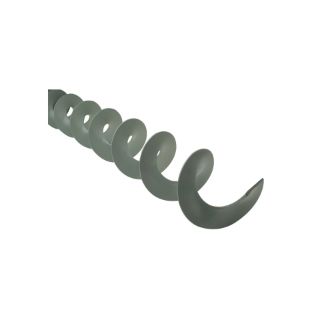

Martin Conveyor Screw, Helicoid Flighting, 18 in Dia, 141 in Length, Steel, 18 in Pitch, Right Hand Flight Type
