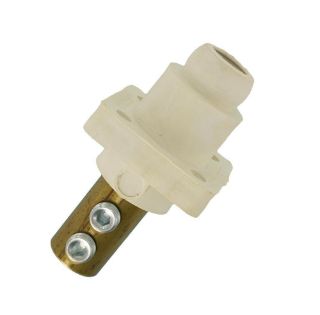

Actual Product May Vary From Image

18R24-W LEV

Name: 18R24-W LEV
Brand: Leviton Manufacturing
SKU: 18R24-W LEV
Availability: OutOfStock

Rhino-Hide® 18R24-W 18 Series 90 deg Ball Nose Cam Type Female Single Pole Receptacle, 600 VAC, 400 A, 1/0 to 4/0 AWG Wire, Double Set Screw Connection, NEMA 3R NEMA Rating

Manufacturer: Leviton Manufacturing

Manufacturer part number: 18R24-W

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

90 deg Ball Nose Cam Type Female

Description

The 18 series Ball nose pin and sleeve type plugs, receptacles and connectors are used by the broadcast industry in Canada, as well as the welding industry in the United States.

Rhino-Hide® Single Pole Receptacle, 90 deg Ball Nose Cam Type Female, Series: 18 Series, 600 VAC, 400 A, 1/0 to 4/0 AWG Wire, Double Set Screw, Brass Contact, TPV Housing, NEMA 3R, Panel Mount, 86 deg F, White, 2.28 in H x 2.28 in W

Application

Motor and Generator Splices, Mining and Construction Sites, Commercial and Navy Shipbuilding and Repair and Other Temporary Power Applications, Entertainment and Movie Industry, Concerts and Theme Parks, Carnival Equipment and Conventions Applications

Standards

CSA File No. 152105 | UL File No. E13399

Features

Intermateable and compatible with competitive cam type products can be retrofitted to existing locations and power distribution systems
Shatter and crack proof - high durometer thermoplastic elastomer (TPV) or neoprene rubber
Color coded insulating sleeves for fast and easy phase identification
Self compensating for wear - slit and cam in male contact provides spring action for longer usage
Quick connect/disconnect - twist and pull provided by double cam male and cam button in female
High conductivity positive, vibration-proof connection provided by double cam design
Wide range of applications - usable with a wide range of cable and amperage ratings

Specifications

Amperage Rating:	400 A
Color:	White
Connection Type:	Double Set Screw
Contact Material:	Brass
Country of Origin:	MX
Dimensions:	2.28 in H x 2.28 in W
Housing Material:	TPV
Mounting Type:	Panel
NEMA Rating:	NEMA 3R
Series:	18 Series
Temperature Rating:	86 deg F
Voltage Rating:	600 VAC
Wire Size:	1/0 to 4/0 AWG
