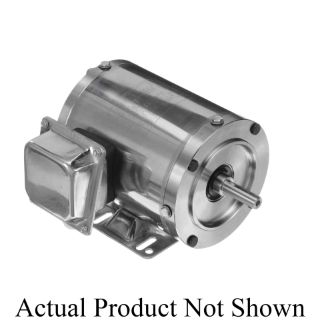

Picture of 191200.00 LEE
Actual Product May Vary From Image

191200.00 LEE

LEESON® Washguard® 191200.00 2-Pole Continuous Duty AC Motor, Totally Enclosed Nonvented (TENV) Enclosure, 0.33 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 56C Frame, 3450 rpm Speed, C-Face/Rigid Base Mount
Manufacturer: Leeson Electric
Manufacturer part number: 191200.00
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,480.00

Product Details

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Description

LEESON® Washguard® AC Motor, 2-Pole Continuous Duty, Inverter Ready Special Features, 0.33 hp, 208 to 230/460 VAC, 1.1 to 1/0.5 A, 60 Hz Frequency, 3 ph ph, 3450 rpm Speed, 1 Speed, Totally Enclosed Nonvented (TENV) Enclosure, 56C Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 8 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 9.78 in L x 6.77 in H Dimensions

Application

Food Processing, Baking Industry, Commercial and Industrial Applications

Standards

BISSC/CSA Certified | UL Listed

Features

Inverter Ready

Specifications

Amperage Rating:1.1 to 1/0.5 A
Bearing Type:Ball
Country of Origin:CN
Dimensions:9.78 in L x 6.77 in H
Enclosure Type:Totally Enclosed Nonvented (TENV)
Frame:56C
Frequency Rating:60 Hz
Horsepower:0.33 hp
Insulation Class:Class F
Material:Rolled Steel
Mounting Type:C-Face/Rigid Base
Number of Speeds:1
Phase:3 ph
Rotation:Reversible
Service Factor:1.15
Shaft Size:0.63 in Dia x 1.88 in L
Speed:3450 rpm
Temperature Rating:40 deg C
Torque Rating:8 ft-lb
Variable Torque Speed Range:10:1
Voltage Rating:208 to 230/460 VAC
