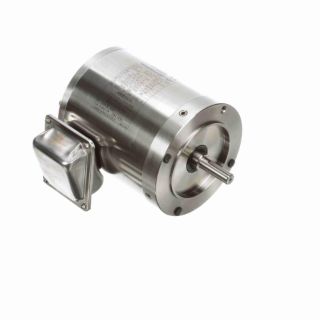

Picture of 191202.00 LEE
Actual Product May Vary From Image

191202.00 LEE

LEESON® Washguard® 191202.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Nonvented (TENV) Enclosure, 0.33 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 56C Frame, 1740 rpm Speed, Round/C-Face/Footless Mount
Manufacturer: Leeson Electric
Manufacturer part number: 191202.00
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$728.82

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® Washguard® AC Motor, 4-Pole Continuous Duty, Inverter Ready Special Features, 0.33 hp, 208 to 230/460 VAC, 1.2 to 1.3/0.65 A, 60 Hz Frequency, 3 ph ph, 1740 rpm Speed, 1 Speed, Totally Enclosed Nonvented (TENV) Enclosure, 56C Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 16 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 9.78 in L Dimensions

Application

Food Processing, Baking Industry, Commercial and Industrial Applications

Standards

BISSC/CE/CSA Certified | UL Listed

Features

Inverter Ready

Specifications

Amperage Rating:1.2 to 1.3/0.65 A
Bearing Type:Ball
Country of Origin:CN
Dimensions:9.78 in L
Enclosure Type:Totally Enclosed Nonvented (TENV)
Frame:56C
Frequency Rating:60 Hz
Horsepower:0.33 hp
Insulation Class:Class F
Material:Rolled Steel
Mounting Type:Round/C-Face/Footless
Number of Speeds:1
Phase:3 ph
Rotation:Reversible
Service Factor:1.15
Shaft Size:0.63 in Dia x 1.88 in L
Speed:1740 rpm
Temperature Rating:40 deg C
Torque Rating:16 ft-lb
Variable Torque Speed Range:10:1
Voltage Rating:208 to 230/460 VAC
