Actual Product May Vary From Image

191474.00 LEE

Name: 191474.00 LEE
Brand: Leeson Electric
SKU: 191474.00 LEE
Price: 446.87 USD
Availability: OutOfStock

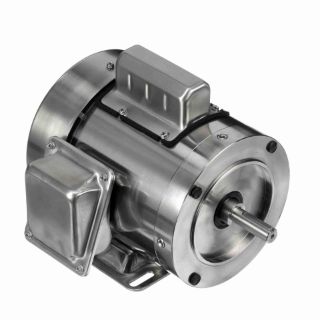

LEESON® Washguard® 191474.00 2-Pole Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 0.5 hp, 115/230 VAC, 60 Hz, 1 ph Phase, 56C Frame, 3450 rpm Speed, C-Face/Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 191474.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$446.87

Qty:

Product Details

Brand Name

LEESON®

Type

2-Pole Continuous-Duty

Description

LEESON® Washguard® AC Motor, 2-Pole Continuous-Duty, Capacitor Start Motors, Inverter Ready Special Features, 0.5 hp, 115/230 VAC, 7.4/3.7 A, 60 Hz Frequency, 1 ph ph, 3450 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 0.63 in Dia x 1.88 in L Shaft, Selective CCW Rotation, 1.15 Service Factor, Ball Bearing, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Stainless Steel, 10:1 Variable Torque Speed, 12.24 in L x 9.09 in H Dimensions

Application

Food Processing, Baking Industry, Commercial and Industrial Applications

Standards

BISSC/CE/CSA Certified | UL Listed

Features

Capacitor Start Motors, Inverter Ready

Specifications

Amperage Rating:	7.4/3.7 A
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	12.24 in L x 9.09 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	56C
Frequency Rating:	60 Hz
Horsepower:	0.5 hp
Insulation Class:	Class F
Material:	Stainless Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	1 ph
Rotation:	Selective CCW
Service Factor:	1.15
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	3450 rpm
Temperature Rating:	40 deg C
Variable Torque Speed Range:	10:1
Voltage Rating:	115/230 VAC
