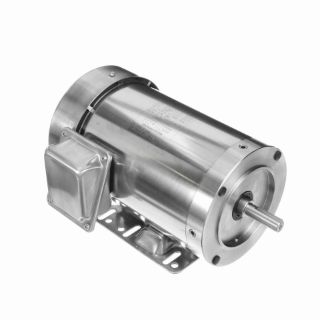

Actual Product May Vary From Image

191560.00 LEE

Name: 191560.00 LEE
Brand: Leeson Electric
SKU: 191560.00 LEE
Price: 1,278.44 USD
Availability: OutOfStock

LEESON® Washguard® 191560.00 2-Pole Squirrel Cage Inverter Rated Washdown Motor, Totally Enclosed Fan Cooled Enclosure, 1-1/2 hp, 208 to 230/460 V, 60/50 Hz, 3 ph Phase, 56HC Frame, 3510 rpm Speed, Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 191560.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,278.44

Qty:

Product Details

Brand Name

LEESON®

Type

2-Pole Squirrel Cage Inverter Rated

Description

LEESON® Washguard® Washdown Motor, 2-Pole Squirrel Cage Inverter Rated, Special Features: Washdown Duty Motors, 1-1/2 hp, 208 to 230/460 V, 4.2 to 3.8/1.9 A, 60/50 Hz, 3 ph, 3510 rpm, 1 Speed, Totally Enclosed Fan Cooled, 56HC Frame, 0.625 in Dia x 2.06 in L Shaft, Reversible, Service Factor: 1.15, Ball Bearing, Rigid Base Mount, 40 deg C, Insulation Class: Class F, Stainless Steel, 13.77 in L

Application

Baking Industry

Standards

BISSC Certified | CE Certified | CSA Certified | UL Recognized

Features

Washdown Duty Motors

Specifications

Amperage Rating:	4.2 to 3.8/1.9 A
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	13.77 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	56HC
Frequency Rating:	60/50 Hz
Horsepower:	1-1/2 hp
Insulation Class:	Class F
Material:	Stainless Steel
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.625 in Dia x 2.06 in L
Speed:	3510 rpm
Temperature Rating:	40 deg C
Voltage Rating:	208 to 230/460 V
