191XL-120-240R FSG

Name: 191XL-120-240R FSG
Brand: Federal Signal
SKU: 191XL-120-240R FSG
Price: 1,174.94 USD
Availability: OutOfStock

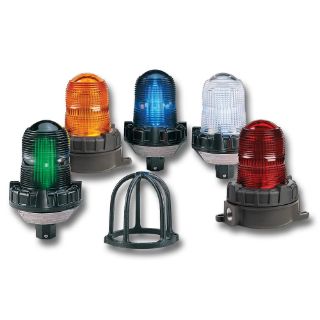

Federal Signal 191XL-120-240R 191XL Flashing Warning Light, 120 to 240 VAC, LED Lamp, 5-1/2 in Dia, Surface Mount, Red Lens

Manufacturer: Federal Signal

Manufacturer part number: 191XL-120-240R

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,174.94

Qty:

Product Details

Brand Name

Federal Signal

Alternate Supplier #

Grainger - 1TAH3

Description

Federal Signal Flashing Warning Light, Series: 191XL, 120 to 240 VAC, 0.13 to 0.21 A, Cylindrical, 5-1/2 in Dia, LED Lamp, Red Lens, Standard Flashing/Steady Burn Flash, 60 fpm Flash, 70.8 cd, 50000 hr Average Life, Surface Mount, NEMA 4X/IP66/IP69K, -58 to 150 deg F, Copper Free Aluminum/Glass Housing, 5-1/2 in W x 5-1/2 in D x 9-1/4 in H

Application

Marine, Indoor/Outdoor and Hazardous Location

Standards

BAA Compliant | UL Listed | cUL Listed for Class I Div 2, Groups A, B, C, D, Class II Div 1, Groups E, F, G, Class III

Features

Flashing mode standard, configurable to steady burn via circuit board jumper
Increased shock and vibration resistance add to this unit's rugged industrial portfolio of features
2.0 A, 0.25 ms at 120/240 VAC inrush current
Glass dome
3/4 in NPT pipe/surface mounting
50000 hr vibration resistant LED lamp

Includes

Dome Guard

Specifications

Amperage Rating:	0.13 to 0.21 A
Average Life:	50000 hr
Country of Origin:	US
Diameter:	5-1/2 in
Dimensions:	5-1/2 in W x 5-1/2 in D x 9-1/4 in H
Flash Rate:	60 fpm
Flash Type:	Standard Flashing/Steady Burn
Housing Material:	Copper Free Aluminum/Glass
Lamp Type:	LED
Lens Color:	Red
Light Output:	70.8 cd
Mounting Type:	Surface
NEMA Rating:	NEMA 4X/IP66/IP69K
Series:	191XL
Shape:	Cylindrical
Temperature Rating:	-58 to 150 deg F
Voltage Rating:	120 to 240 VAC
