192206.00 LEE

Name: 192206.00 LEE
Brand: Leeson Electric
SKU: 192206.00 LEE
Availability: OutOfStock

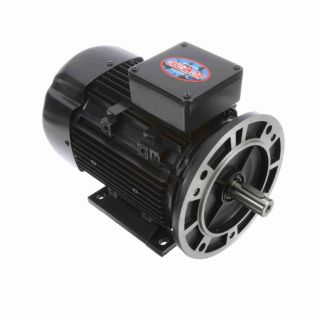

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

192206.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Alternate Supplier #

Grainger - 5PGH8

Description

LEESON® AC Motor, 4-Pole Continuous Duty, IEC Metric Motors Special Features, 2 hp, 230/460 VAC, 5.4/2.7 A, 60 Hz Frequency, 3 ph ph, 1745 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, D90LD Frame, 1 in Dia x 1.96 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 6.02 ft-lb Torque, B3 Flange/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Aluminum, 10:1 Variable Torque Speed, 12.83 in L Dimensions

Application

Machine Tools, Textile Tools, Textile Machinery, Other Equipment, Commercial and Industrial Applications

Standards

CSA Certified | CSA LR33543 | UL E57948 Listed

Features

IEC Metric Motors

Specifications

Amperage Rating:	5.4/2.7 A
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	12.83 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	D90LD
Frequency Rating:	60 Hz
Horsepower:	2 hp
Insulation Class:	Class F
Material:	Aluminum
Mounting Type:	B3 Flange/Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	1 in Dia x 1.96 in L
Speed:	1745 rpm
Temperature Rating:	40 deg C
Torque Rating:	6.02 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
