192209.00 LEE

Name: 192209.00 LEE
Brand: Leeson Electric
SKU: 192209.00 LEE
Availability: OutOfStock

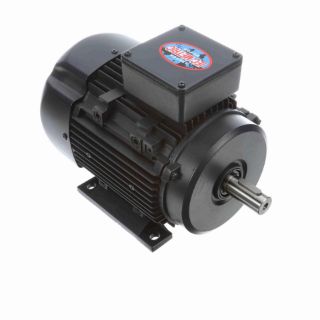

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

192209.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Alternate Supplier #

Grainger - 11N106

Description

LEESON® AC Motor, 2-Pole Continuous Duty, IEC Metric Motors Special Features, 3 hp, 230/460 VAC, 7.2/3.6 A, 60 Hz Frequency, 3 ph ph, 3500 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 90L Frame, 1 in Dia x 1.96 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 4.5 ft-lb Torque, B3 Flange/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Aluminum, 10:1 Variable Torque Speed, 13.42 in L Dimensions

Application

Machine Tools, Textile Tools, Textile Machinery, Other Equipment, Commercial and Industrial Applications

Standards

CSA Certified | CSA LR33543 | UL E57948 Listed

Features

IEC Metric Motors

Specifications

Amperage Rating:	7.2/3.6 A
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	13.42 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	90L
Frequency Rating:	60 Hz
Horsepower:	3 hp
Insulation Class:	Class F
Material:	Aluminum
Mounting Type:	B3 Flange/Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	1 in Dia x 1.96 in L
Speed:	3500 rpm
Temperature Rating:	40 deg C
Torque Rating:	4.5 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
