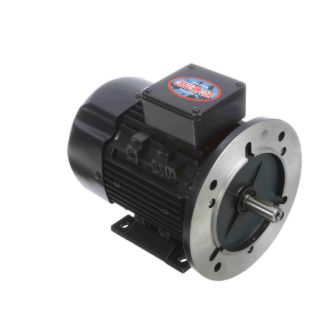

Actual Product May Vary From Image

192245.00 LEE

Name: 192245.00 LEE
Brand: Leeson Electric
SKU: 192245.00 LEE
Price: 163.86 USD
Availability: OutOfStock

LEESON® 192245.00 2-Pole Squirrel Cage Induction Run General Purpose Motor, Totally Enclosed Fan Cooled Enclosure, 1-1/2 hp, 230/460 V, 60/50 Hz, 3 ph Phase, D80D Frame, 3450 rpm Speed, Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 192245.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$163.86

Qty:

Product Details

Brand Name

LEESON®

Type

2-Pole Squirrel Cage Induction Run

Description

LEESON® General Purpose Motor, 2-Pole Squirrel Cage Induction Run, Application Type: General Purpose AC Motors, 1-1/2 hp, 230/460 V, 4/2 A, 60/50 Hz, 3 ph, 3450 rpm, 1 Speed, Totally Enclosed Fan Cooled, D80D Frame, 0.75 in Dia x 1.57 in L Shaft, Reversible, Service Factor: 1.15, Ball Bearing, Rigid Base Mount, 40 deg C, Insulation Class: Class F, Aluminum, 11.1 in L x 200 mm H

Standards

CE Certified | CSA Certified | UL Listed | UL Recognized

Features

50/60 Hz interchangeability
B3/B5/B14 mounting flanges
Inverter-rated (IRIS™) insulation system on AC models

Specifications

Amperage Rating:	4/2 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	11.1 in L x 200 mm H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	D80D
Frequency Rating:	60/50 Hz
Horsepower:	1-1/2 hp
Insulation Class:	Class F
Material:	Aluminum
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.75 in Dia x 1.57 in L
Speed:	3450 rpm
Temperature Rating:	40 deg C
Voltage Rating:	230/460 V
