192247.00 LEE

Name: 192247.00 LEE
Brand: Leeson Electric
SKU: 192247.00 LEE
Availability: OutOfStock

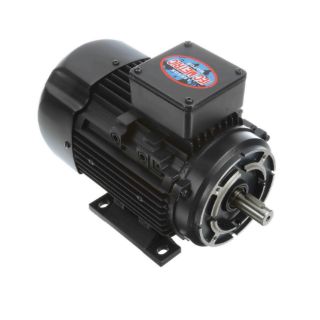

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

192247.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

4-Pole Squirrel Cage Induction Run

Description

LEESON® General Purpose Motor, 4-Pole Squirrel Cage Induction Run, Application Type: General Purpose AC Motors, 1 hp, 230/460 V, 3/1.5 A, 60/50 Hz, 3 ph, 1740 rpm, 1 Speed, Totally Enclosed Fan Cooled, 80C Frame, 0.75 in Dia x 1.57 in L Shaft, Reversible, Service Factor: 1.15, Ball Bearing, Rigid Base Mount, 40 deg C, Insulation Class: Class F, Aluminum, 11.88 in L x 206.5 mm H

Standards

CE Certified | CSA Certified | UL Listed | UL Recognized

Features

50/60 Hz interchangeability
B3/B5/B14 mounting flanges
Inverter-rated (IRIS™) insulation system on AC models

Specifications

Amperage Rating:	3/1.5 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	11.88 in L x 206.5 mm H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	80C
Frequency Rating:	60/50 Hz
Horsepower:	1 hp
Insulation Class:	Class F
Material:	Aluminum
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.75 in Dia x 1.57 in L
Speed:	1740 rpm
Temperature Rating:	40 deg C
Voltage Rating:	230/460 V
