Actual Product May Vary From Image

193341.60 LEE

Name: 193341.60 LEE
Brand: Leeson Electric
SKU: 193341.60 LEE
Price: 2,112.29 USD
Availability: OutOfStock

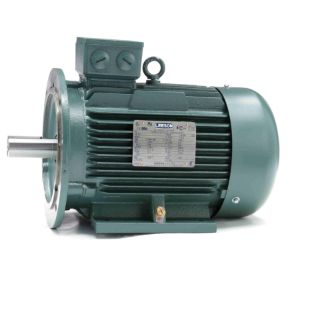

LEESON® 193341.60 6-Pole Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 5-1/2 hp, 230/460 VAC, 60 Hz, 3 Phase, 132M Frame, 1180 rpm Speed, B3 Flange/Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 193341.60

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$2,112.29

Qty:

Product Details

Brand Name

LEESON®

Type

6-Pole Continuous-Duty

Description

LEESON® AC Motor, 6-Pole Continuous-Duty, IEC Metric Motors Special Features, 5-1/2 hp, 230/460 VAC, 17/8.5 A, 60 Hz Frequency, 3 ph, 1180 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 132M Frame, 1.5 in Dia x 3.15 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 30.9 ft-lb Torque, B3 Flange/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 10:1 Variable Torque Speed, 18.26 in L Dimensions

Application

Machine Tools, Textile Tools, Textile Machinery, Other Equipment, Commercial and Industrial Applications

Standards

CSA Certified | CSA LR62104 | UL E57948 Listed

Features

IEC Metric Motors

Specifications

Amperage Rating:	17/8.5 A
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	18.26 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	132M
Frequency Rating:	60 Hz
Horsepower:	5-1/2 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	B3 Flange/Rigid Base
Number of Speeds:	1
Phase:	3
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	1.5 in Dia x 3.15 in L
Speed:	1180 rpm
Temperature Rating:	40 deg C
Torque Rating:	30.9 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
