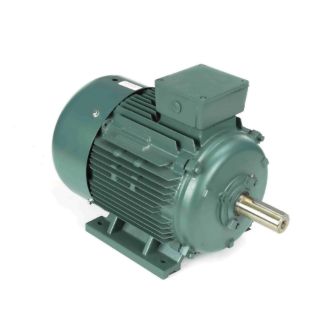

Actual Product May Vary From Image

193423.60 LEE

Name: 193423.60 LEE
Brand: Leeson Electric
SKU: 193423.60 LEE
Price: 11,166.24 USD
Availability: OutOfStock

LEESON® 193423.60 4-Pole Squirrel Cage Inverter Rated General Purpose Motor, Totally Enclosed Fan Cooled Enclosure, 100 hp, 230/460 V, 60/50 Hz, 3 ph Phase, 280S Frame, 1785 rpm Speed, Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 193423.60

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$11,166.24

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Squirrel Cage Inverter Rated

Description

LEESON® General Purpose Motor, 4-Pole Squirrel Cage Inverter Rated, Application Type: General Purpose AC Motors, 100 hp, 230/460 V, 226/113 A, 60/50 Hz, 3 ph, 1785 rpm, 1 Speed, Totally Enclosed Fan Cooled, 280S Frame, 3 in Dia x 5.51 in L Shaft, Reversible, Service Factor: 1.15, Ball Bearing, Rigid Base Mount, 40 deg C, Insulation Class: Class F, Cast Iron, 38.39 in L

Standards

CE Certified | CSA Certified | UL Listed | UL Recognized

Features

50/60 Hz interchangeability
B3/B5/B14 mounting flanges
Inverter-rated (IRIS™) insulation system on AC models

Specifications

Amperage Rating:	226/113 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	38.39 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	280S
Frequency Rating:	60/50 Hz
Horsepower:	100 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	3 in Dia x 5.51 in L
Speed:	1785 rpm
Temperature Rating:	40 deg C
Voltage Rating:	230/460 V
