19/3V425 GAT

Name: 19/3V425 GAT
Brand: Gates Corporation
SKU: 19/3V425 GAT
Availability: OutOfStock

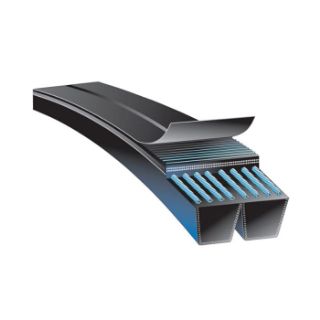

Actual Product May Vary From Image

Product Details

Manufacturer:

Gates Corporation

Manufacturer part number:

19/3V425

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Gates®

Type

Heavy Duty Banded

Description

The PowerBand® construction allows multiple belts to function as a single unit, with even load distribution and each strand fitting securely in the sheave groove.

Gates® Super HC® PowerBand® V-Belt, Heavy Duty Banded, Series: 9385, 3V Section, 3/8 in Top Width, 42-1/2 in Outside Length, 23/64 in Thickness, 19 Ribs, -22 to 140 deg F, Ethylene, Polyester Reinforced

Application

For multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive

Standards

ARPM/RMA IP-3-2/IP-3-3 Standard

Features

Flex bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
The tie band assures high lateral rigidity, guiding the belt in a straight line and preventing it from coming off the drive
Concave sidewalls provide proper cord support and full contact with the sheave groove for equal loading and uniform wear

Specifications

Material:	Ethylene
Number of Ribs:	19
Outside Length:	42-1/2 in
Reinforced Material:	Polyester
Section Size:	3V
Series:	9385
Temperature Range:	-22 to 140 deg F
Thickness:	23/64 in
Top Width:	3/8 in
