194007.00 MAR

Name: 194007.00 MAR
Brand: Leeson Electric
SKU: 194007.00 MAR
Price: 5,566.63 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

194007.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$5,566.63 / EA

Description

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Alternate Supplier #

Grainger - 798GA3

Description

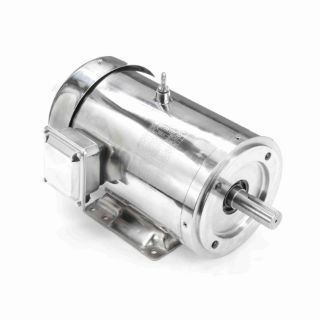

LEESON® Washguard® AC Motor, 4-Pole Continuous Duty, Inverter Ready Special Features, 10 hp, 230/460 VAC, 25.2/12.6 A, 60 Hz Frequency, 3 ph, 1745 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 215TC Frame, 1.38 in Dia x 3.38 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 29.6 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Stainless Steel, 10:1 Variable Torque Speed, 21.57 in L x 12.4 in H Dimensions

Application

Food Processing, Baking Industry, Commercial and Industrial Applications

Standards

BISSC/CE/CSA Certified | UL Listed

Features

Inverter Ready

Specifications

Amperage Rating:	25.2/12.6 A
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	21.57 in L x 12.4 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	215TC
Frequency Rating:	60 Hz
Horsepower:	10 hp
Insulation Class:	Class F
Material:	Stainless Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	3
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	1.38 in Dia x 3.38 in L
Speed:	1745 rpm
Temperature Rating:	40 deg C
Torque Rating:	29.6 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
