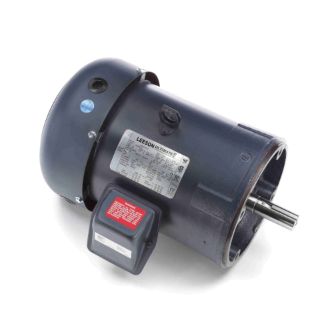

Actual Product May Vary From Image

199085.00 LEE

Name: 199085.00 LEE
Brand: Leeson Electric
SKU: 199085.00 LEE
Availability: OutOfStock

LEESON® Ultimate e® 199085.00 4-Pole Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 5 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 184TC Frame, 1740 rpm Speed, Round/C-Face/Footless Mount

Manufacturer: Leeson Electric

Manufacturer part number: 199085.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous-Duty

Description

LEESON® Ultimate e® AC Motor, 4-Pole Continuous-Duty, General Purpose AC Motors Application, 5 hp, 230/460 VAC, 12.4/6.2 A, 60 Hz Frequency, 3 ph ph, 1740 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 184TC Frame, 1.13 in Dia x 2.75 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 15.1 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 10:1 Variable Torque Speed, 16.73 in L x 12.44 in W x 11.02 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Meets or exceeds NEMA premium efficiencies
Shielded ball bearings for direct coupled applications
Torques exceed NEMA performance standards
Stamped steel conduit box
Standard assembly F1 and reversible to F2 by reassembly
Provisions for shaft grounding ring

Specifications

Amperage Rating:	12.4/6.2 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	16.73 in L x 12.44 in W x 11.02 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	184TC
Frequency Rating:	60 Hz
Horsepower:	5 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Round/C-Face/Footless
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	1.13 in Dia x 2.75 in L
Speed:	1740 rpm
Temperature Rating:	40 deg C
Torque Rating:	15.1 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
