Actual Product May Vary From Image

199094.00 LEE

Name: 199094.00 LEE
Brand: Leeson Electric
SKU: 199094.00 LEE
Availability: OutOfStock

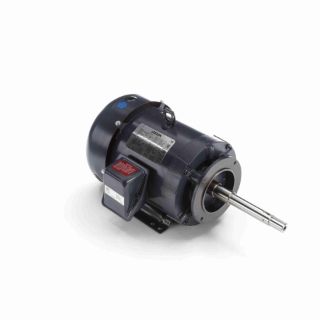

LEESON® 199094.00 2-Pole Squirrel Cage Inverter Rated Close Coupled Pump Motor, Totally Enclosed Fan Cooled Enclosure, 5 hp, 230/460 V, 60/50 Hz, 3 ph Phase, 184JP Frame, 3530 rpm Speed, Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 199094.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

2-Pole Squirrel Cage Inverter Rated

Description

LEESON® Close Coupled Pump Motor, 2-Pole Squirrel Cage Inverter Rated, 5 hp, 230/460 V, 12/6 A, 60/50 Hz, 3 ph, 3530 rpm, 1 Speed, Totally Enclosed Fan Cooled, 184JP Frame, 0.875 in Dia x 5.937 in L Shaft, Reversible, Service Factor: 1.15, Ball Bearing, Rigid Base Mount, 40 deg C, Insulation Class: Class F, Rolled Steel, 20.05 in L x 12.44 in W x 10.39 in H

Standards

CSA Certified | UL Recognized

Features

Premium efficiency rating
Regreasable bearings

Specifications

Amperage Rating:	12/6 A
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	20.05 in L x 12.44 in W x 10.39 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	184JP
Frequency Rating:	60/50 Hz
Horsepower:	5 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.875 in Dia x 5.937 in L
Speed:	3530 rpm
Temperature Rating:	40 deg C
Voltage Rating:	230/460 V
