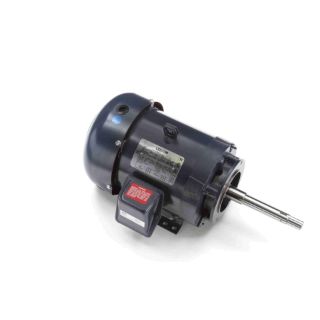

Picture of 199095.00 LEE
Actual Product May Vary From Image

199095.00 LEE

LEESON® 199095.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 5 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 184JP Frame, 1740 rpm Speed, C-Face/Rigid Base Mount
Manufacturer: Leeson Electric
Manufacturer part number: 199095.00
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, Jet Pump (JM/JP) Motors Application, 5 hp, 230/460 VAC, 12.4/6.2 A, 60 Hz Frequency, 3 ph ph, 1740 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 184JP Frame, 0.88 in Dia x 7.28 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 15.1 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 19.06 in L x 12.44 in W x 10.39 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

  • Premium efficient ratings
  • Regreasable bearings

Specifications

Amperage Rating:12.4/6.2 A
Application Type:Jet Pump (JM/JP) Motors
Bearing Type:Ball
Country of Origin:CN
Dimensions:19.06 in L x 12.44 in W x 10.39 in H
Enclosure Type:Totally Enclosed Fan Cooled
Frame:184JP
Frequency Rating:60 Hz
Horsepower:5 hp
Insulation Class:Class F
Material:Rolled Steel
Mounting Type:C-Face/Rigid Base
Number of Speeds:1
Phase:3 ph
Rotation:Reversible
Service Factor:1.15
Shaft Size:0.88 in Dia x 7.28 in L
Speed:1740 rpm
Temperature Rating:40 deg C
Torque Rating:15.1 ft-lb
Variable Torque Speed Range:10:1
Voltage Rating:230/460 VAC
