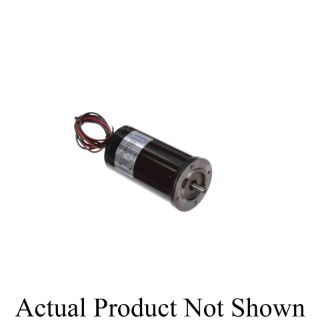

Actual Product May Vary From Image

199097.00 LEE

Name: 199097.00 LEE
Brand: Leeson Electric
SKU: 199097.00 LEE
Availability: OutOfStock

LEESON® 199097.00 2-Pole Continuous Duty AC Motor, DP Enclosure, 5 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 184JP Frame, 3460 rpm Speed, C-Face/Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 199097.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Description

LEESON® AC Motor, 2-Pole Continuous Duty, Jet Pump (JM/JP) Motors Application, 5 hp, 230/460 VAC, 12.4/6.2 A, 60 Hz Frequency, 3 ph ph, 3460 rpm Speed, 1 Speed, DP Enclosure, 184JP Frame, 0.88 in Dia x 7.28 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 7.6 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 20.46 in L x 11.61 in W x 10.41 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Open drip-proof construction with rigid base mounting
Locked bearing on shaft end limits axial shaft movement
Squirrel cage inverter rated
For use with clean and dry environment and outdoor

Specifications

Amperage Rating:	12.4/6.2 A
Application Type:	Jet Pump (JM/JP) Motors
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	20.46 in L x 11.61 in W x 10.41 in H
Enclosure Type:	DP
Frame:	184JP
Frequency Rating:	60 Hz
Horsepower:	5 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.88 in Dia x 7.28 in L
Speed:	3460 rpm
Temperature Rating:	40 deg C
Torque Rating:	7.6 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
