199590.00 LEE

Name: 199590.00 LEE
Brand: Leeson Electric
SKU: 199590.00 LEE
Availability: OutOfStock

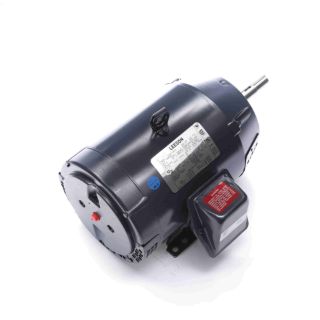

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

199590.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, Jet Pump (JM/JP) Motors Application, 5 hp, 230/460 VAC, 12.8/6.4 A, 60 Hz Frequency, 3 ph ph, 1755 rpm Speed, 1 Speed, DP Enclosure, 184JM Frame, 0.88 in Dia x 4.21 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 15.1 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 17.37 in L x 11.61 in W x 10.41 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Cooling air exhausts at shaft end for maximum cooling
Locked bearing shaft end
High efficiency copper windings
Squirrel cage inverter rated

Specifications

Amperage Rating:	12.8/6.4 A
Application Type:	Jet Pump (JM/JP) Motors
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	17.37 in L x 11.61 in W x 10.41 in H
Enclosure Type:	DP
Frame:	184JM
Frequency Rating:	60 Hz
Horsepower:	5 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.88 in Dia x 4.21 in L
Speed:	1755 rpm
Temperature Rating:	40 deg C
Torque Rating:	15.1 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
