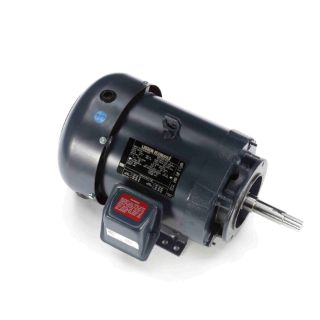

Actual Product May Vary From Image

199768.00 LEE

Name: 199768.00 LEE
Brand: Leeson Electric
SKU: 199768.00 LEE
Availability: OutOfStock

LEESON® 199768.00 2-Pole Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 5 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 184JM Frame, 3500 rpm Speed, C-Face/Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 199768.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

2-Pole Continuous-Duty

Description

LEESON® AC Motor, 2-Pole Continuous-Duty, Jet Pump (JM/JP) Motors Application, 5 hp, 230/460 VAC, 11.6/5.8 A, 60 Hz Frequency, 3 ph ph, 3500 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 184JM Frame, 0.88 in Dia x 4.21 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 7.5 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 18.36 in L x 12.44 in W x 10.39 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Totally enclosed fan cooled construction for maximum life in dirty or severe environments
Oversized locked bearing on shaft end limits axial shaft movement
High efficiency copper windings
Squirrel cage inverter rated

Specifications

Amperage Rating:	11.6/5.8 A
Application Type:	Jet Pump (JM/JP) Motors
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	18.36 in L x 12.44 in W x 10.39 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	184JM
Frequency Rating:	60 Hz
Horsepower:	5 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.88 in Dia x 4.21 in L
Speed:	3500 rpm
Temperature Rating:	40 deg C
Torque Rating:	7.5 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
